SPECIFICATIONS

Material: Metal

Origin: Mainland China

Recommend Age: 14+y

Features:

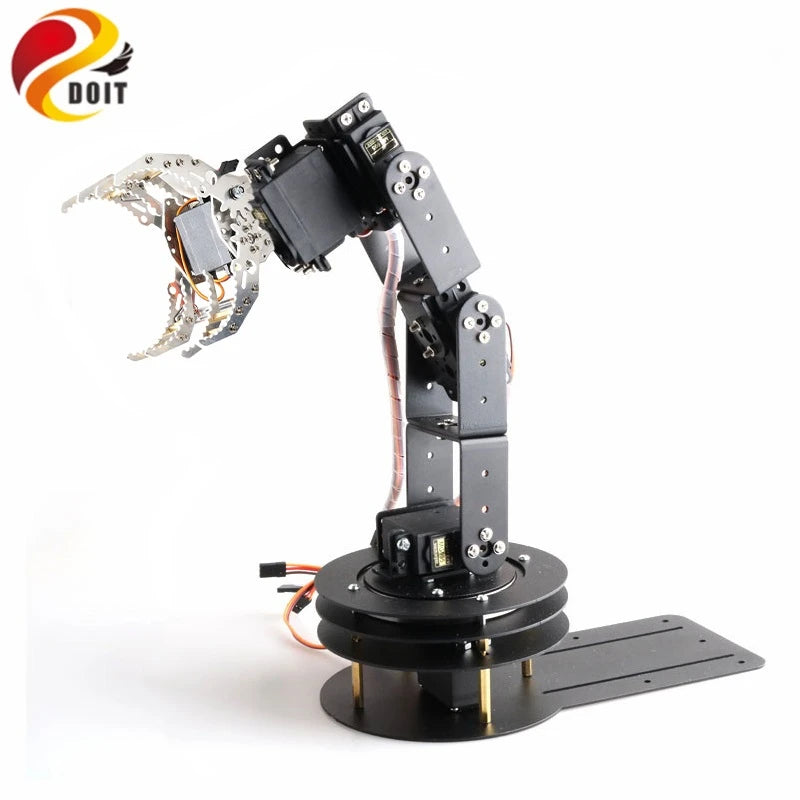

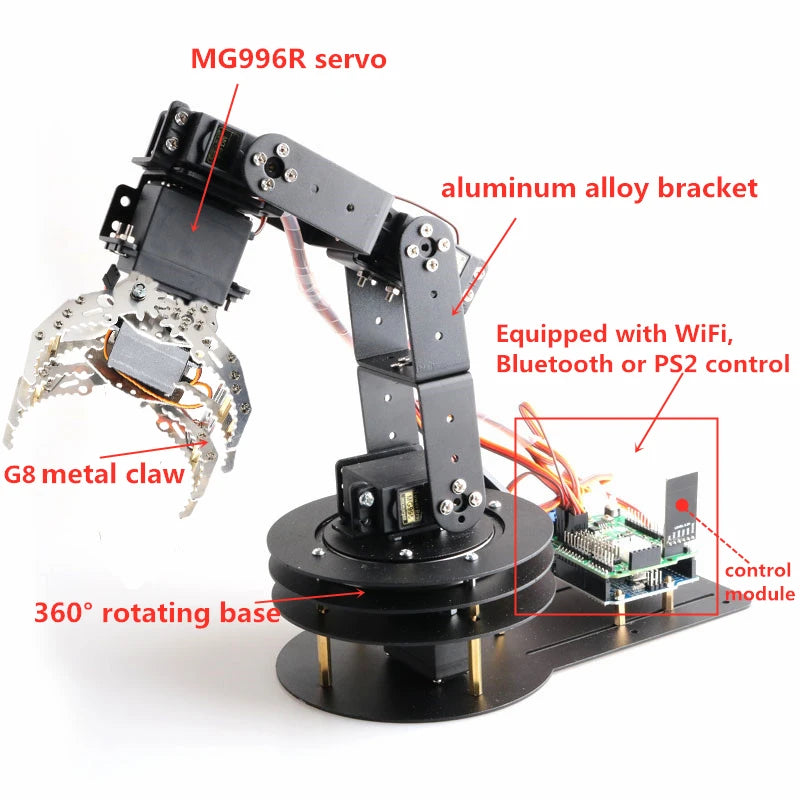

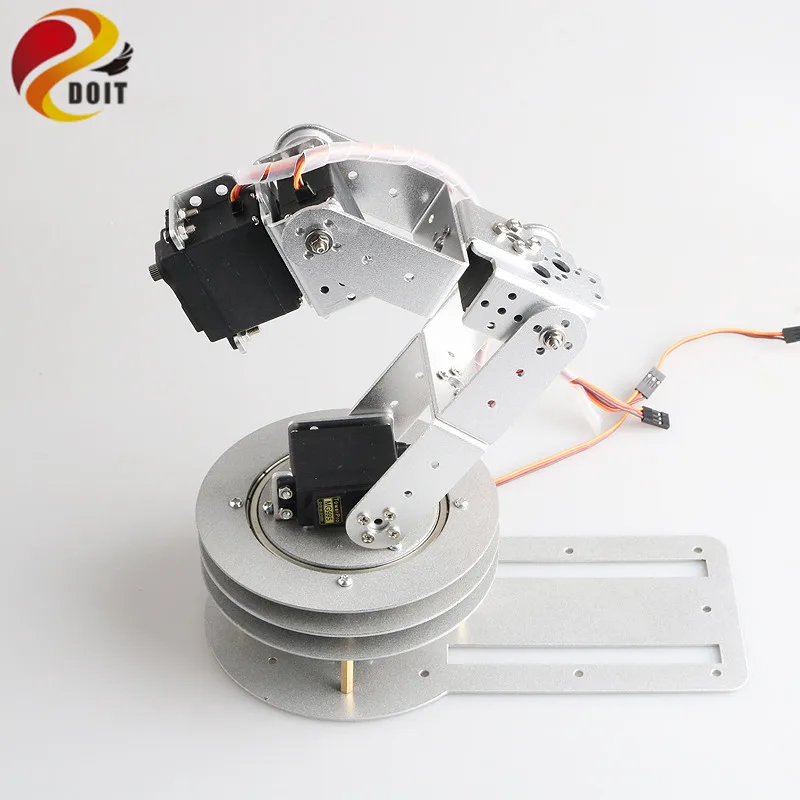

• All metal structure brackets of the robot arm are all made of 2mm thick hard aluminum alloy, which is light in weight and high in strength;

• The base consists of a set of metal discs and a large metal bearing;

• The base takes up the force generated by the movement of the arm, which protects the servo that controls the left and right rotation of the arm, improving flexibility and stability.

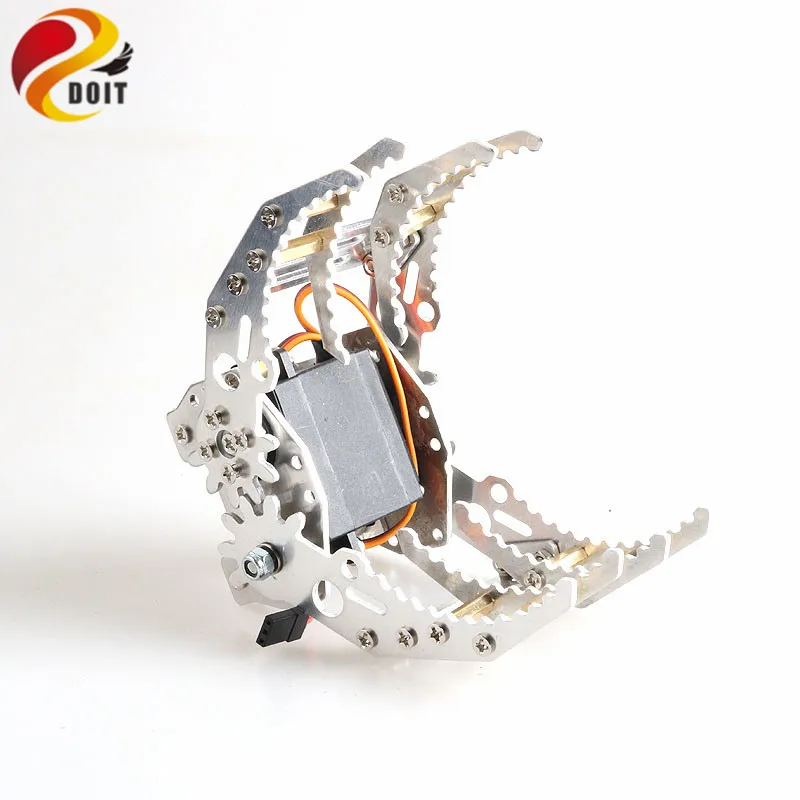

G8 metal gripper parameters:

• Paw material: hard aluminum alloy

• Paw weight: about 120g (without steering gear)

• Pitch maximum angular separation: about 160mm

• Overall length of the paw: about 112mm (the overall longest length when the paw is closed)

• Overall width of the paw: about 60mm (the overall width when the paw is closed)

• Overall thickness of the paw: about 69mm (the thickest overall width when the paw is)

• The claw adopts a double-sided toothed structure, which makes the gripping object more stable and stable, and an essential artifact for grasping the object.

• Standard servo can be installed

Servo parameters:

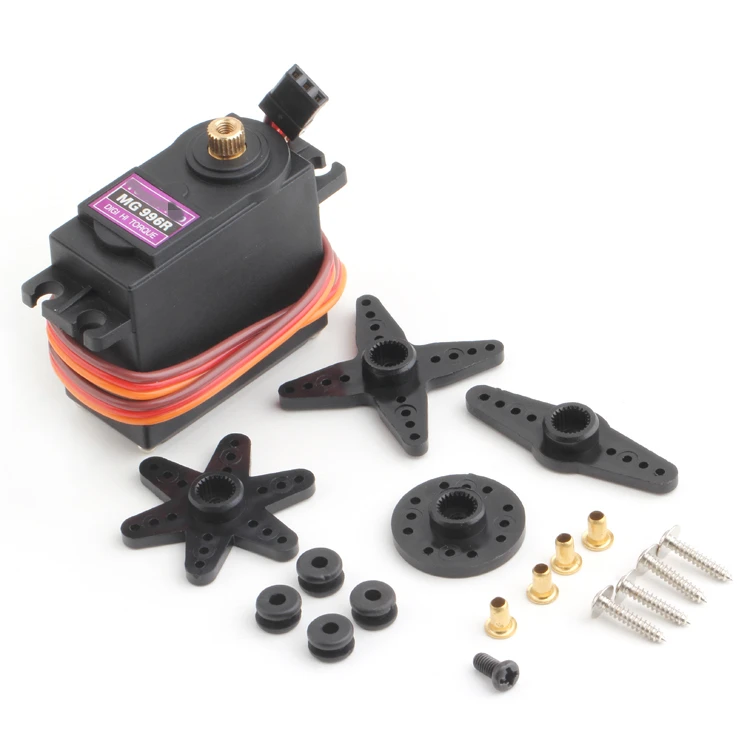

MG996R servo:

• Product size: 40.7 * 19.7 * 42.9 mm

• Product pull: 15 kg / cm (6 V)

• Weight: 55g

• Working speed: 0.17 seconds / 60 degrees (4.8 V no load)

• Working speed: 0.13 seconds / 60 degrees (6.0 V no load)

• Stall torque: 9 kg at 4.8 kg - cm (180.5 oz)

• Stall torque: 12 kg - cm at 6 V (208.3 oz.)

• Working voltage: 4.8 - 7.2 volts

• Gear: metal gear

• Color: Black

• Connector cable: heavy duty, 11.81" (300 mm)

• All metal gears, wear resistance is not easy to sweep teeth

• Double bearing, fixed copper sleeve, stable operation

• High torque for robot servo heads, robots, robots, etc.

Shipping list:

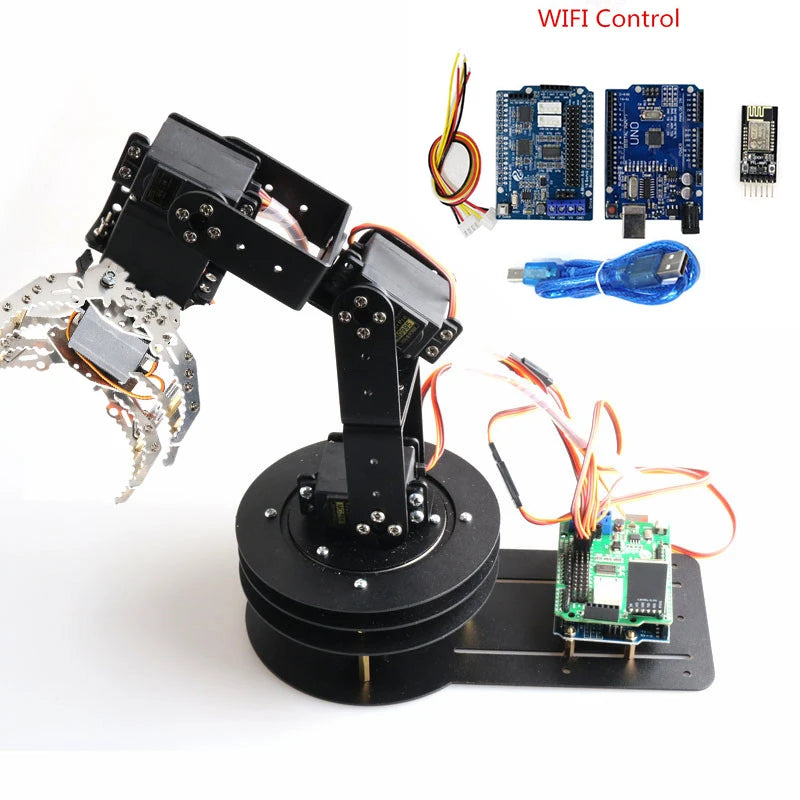

• Black WiFi=1 × black robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × WiFi control kit

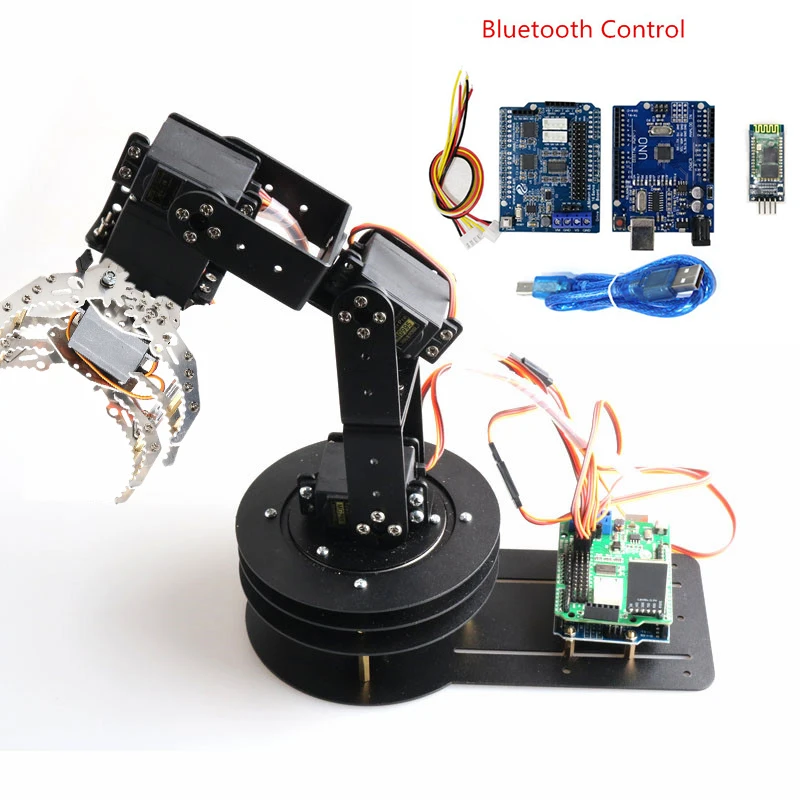

• Black Bluetooth=1 × black robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × Bluetooth control kit

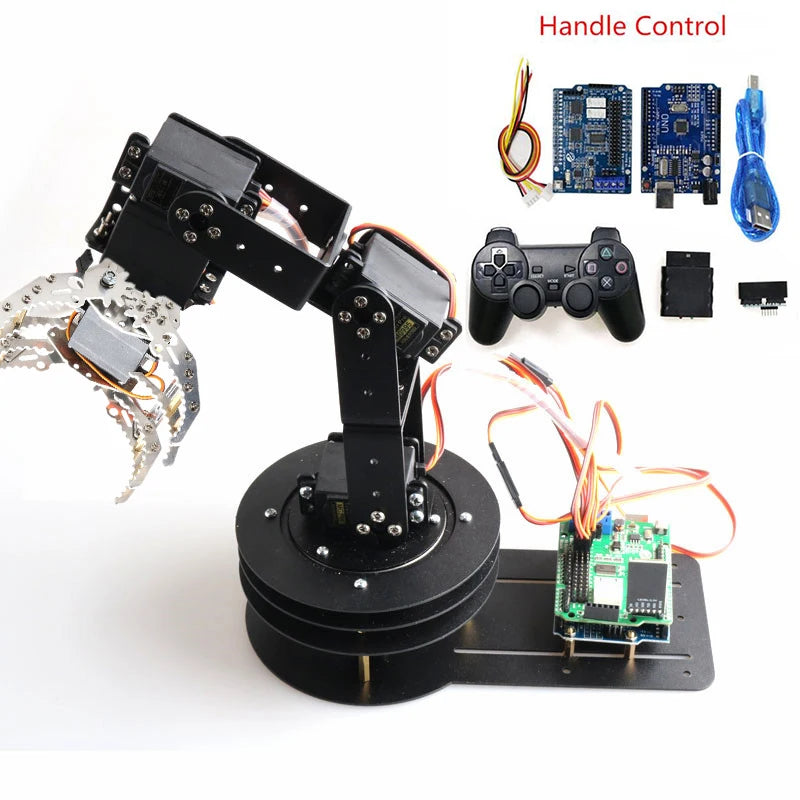

• Black PS2=1 × black robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × PS2 control kit

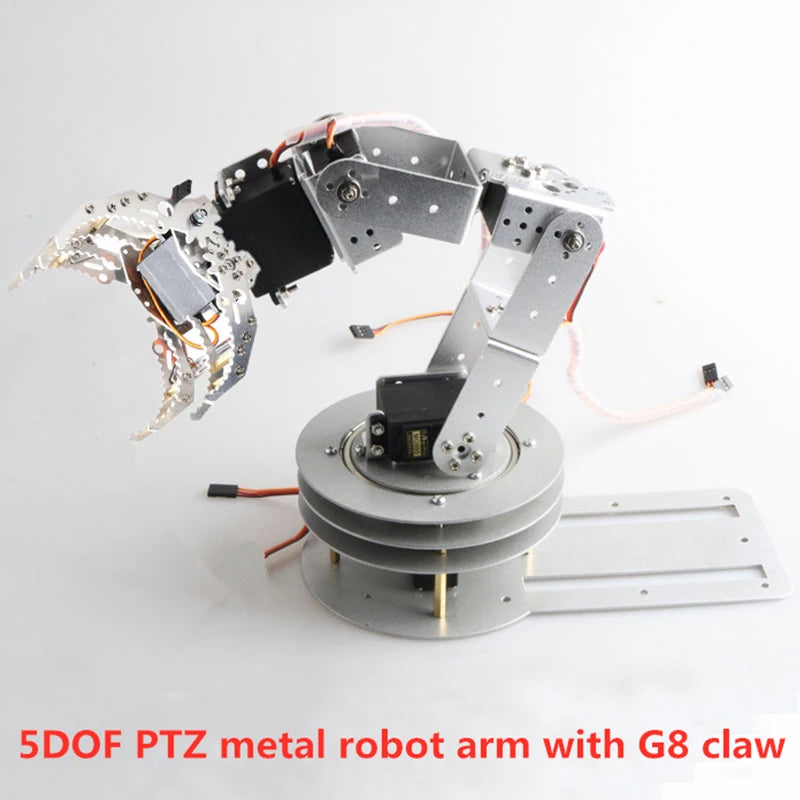

• Silver WiFi=1 × silver robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × WiFi control kit

• Silver Bluetooth=1 × silver robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × Bluetooth control kit

• Silver PS2=1 × silver robot arm bracket kit + 6 × MG996R servos + 1 × G8 metal claw + 1 × PS2 control kit

Note:

• This product does not include a battery and control kit;

• In order to facilitate transportation, the product is not assembled;

• More documents can be downloaded at wiki.doit.am.
